Description

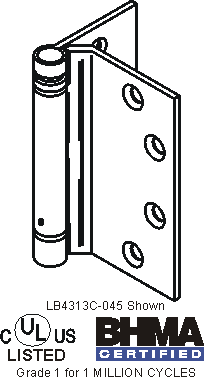

Single Acting Spring Hinges

LUBE BEARING LB4300C SERIES CONTRACT GRADE
PATENT # 6,460,220

LB4392C STAINLESS STEEL
FULL MORTISE – ANSI K51071F

  • UL LISTED FOR FIRE DOOR APPLICATIONS
  • NON-HANDED
  • STAINLESS STEEL MATERIAL
  • SELF LUBRICATING BEARINGS
  • EASILY ADJUSTABLE SPRING TENSION
  • ANSI TEMPLATED SCREW HOLE PATTERN
  • PIVOT POINT ALIGNS WITH COMMERCIAL BUTT HINGES GAUGE .123 TO .134

Product Specifications

ITEM NUMBER HINGE SIZE CORNERS GAUGE HOLE PATTERN # OF HOLES WOOD SCREWS MACHINE SCREWS BOX QTY CASE QTY CASE WT
LB4392C-350 3 1/2 X 3 1/2 5/8 RADIUS 0.13 TEMPLATE 6 10 X 3/4 10-24 X 1/2 2 ea. 40 ea. 34 lbs.
LB4392C-400 4 X 4 5/8 RADIUS 0.13 TEMPLATE 8 12 X 1 1/4 12-24 X 1/2 2 ea. 40 ea. 40 lbs.
LB4392C-454 4 1/2 X 4 5/8 RADIUS 0.134 TEMPLATE 8 12 X 1 1/4 12-24 X 1/2 2 ea. 40 ea. 44 lbs.
LB4392C-450 4 1/2 X 4 1/2 5/8 RADIUS 0.134 TEMPLATE 8 12 X 1 1/4 12-24 X 1/2 2 ea. 40 ea. 47 lbs.
